Reports Wizard Page

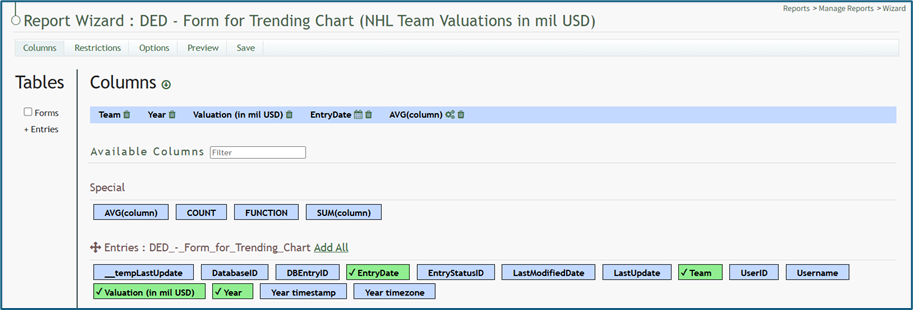

Column Tab Icon Explanations Table

Icon

Explanation


When the down arrow icon shows next to the Column Tab header, the report columns are listed in a horizontal row, and clicking on the arrow will change it to a vertical display.

When the right arrow icon shows next to the Column Tab header, the report columns are listed vertically and clicking on the arrow will change it to a horizontal display.

The trashcan icon will automatically delete the selected column header when clicked.

The calendar icon shows for any system date fields and opens the Configure Date Modal which allows an individual to select the desired date format for the report.

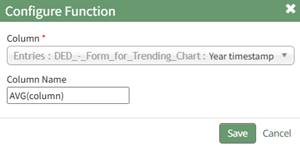

The gear icon will open the Configure Function Modal, which is used to configure one of the four special functions (Average, Count, Function, Sum).

Possible Report Column Headers by Module

Module

Table

Entries

Special

Avg (column), Count, Function, Sum (Column)

The Function option allows advanced customization by technically skilled users. If you would like to use this and need help, please contact the KAStrack support team.

Assets

Assets

Asset Status, Child Deferred, Created By, Creation Date, Critical, Critical Spares, Deferred, Description, Model Number, Serial Number, Tagging Type, Title, Title (Link), URL, URL (Link), Warn Status (Color), Warn Status (Critical)

Asset Types

Asset Type, Created By

Manufacturers

Manufacturer, Created By

Meters

Last Reading, Last Reading (Date), Last Reading (Value), Logged by User, Meter Name

Meter Logs

Reading, Reading Date, Reading User ID

Asset Fields / Asset Tasks

Both of these options will expand to include the asset fields and asset tasks that are specific to your subdomain.

Dispatch

Dispatches

Can View Incidents, Created By (user), Creation Date, Dispatch #, Dispatch Closed Date, Dispatch Date, Distribution List Footer, GUID, Last Update, Notes, Pending Approval, Status, Title

Itinerary Items

Actual Arrival or Start Date, Actual Departure or Finish Date, Arrival or Start Delay (minutes), Arrival or Start Status, Departure or Finish Delay (minutes), Departure or Finish Status, Dispatch #, Expected Arrival or Start Date, Expected Departure or Finish Date, Incident, Location or Activity Name, Overall Status, Type

Forms

Forms

Identifier, Status, Title

Entries

This open will expand to include form entries that are specific to your subdomain.

Meetings

Meeting Participants

Participant

Meeting Instances

Archived, Date, Non-KAStrack Participants, Presenters, Subject, Summary

Meetings

Archived, Count, Date Created, Day of Month, Day of Week, Description, End Date, Meeting Frequency, Meeting Interval, Month, Prioritized, Recurring, Start Time, Title, Visibility

People

People Accounts

Account, Additional Custom Field for Email, Address 1, Address 2, Approved By, Approved Date, Email, Email Verification Required, Email Verified Date, Employee ID, Field for BCC Email, Field for CC Email, Field for Send Comm CC Email, First Name, Home Page, Inactive, Last Active, Last Name, Map A&P #, Other Account Field, Password Token Expiration, People Report Status, Phone, Photo, Registration Date, Sensitive Account Field, Status, Timeout, Username

Certification Roles

Certification Role Name

Certifications

After Duration, After Interval, After Period, Attachment Required, Auto Approve, Auto Approve Activity, Before Duration, Before Interval, Before Period, Certification Expires, Certification ID, Certification Information, Certification Interval, Certification Name, Completion Cost, Completion Duration, Completion Interval, Coordinator ID, Due Duration, Due Interval, Duration of Certification, Expiration Style, Extended Interval, Force Date, Force Expiration, Generate Certificate, Hide Attachments from QR Reports, Hide Attachements from Shared Reports, Hide Expiration, Hide from QR Reports, Hide from Shared Reports, Notification Duration, Notification Interval, Refresher Certification Duration, Refresher Certification Interval, Refresher Completion Cost, Refresher Completion Duration, Refresher Completion Interval, Refresher Due Duration, Refresher Due Interval, Refresher Extend Interval, Refresher Notification Duration, Refresher Notification Interval, Refresher Training, Send Attachments, Training ID, URL

Supervisors

Supervisors, UserID, Username

Trend User Certs (by user and supervisors)

Account, Date, Is Me, Percentage Valid Certifications for Supervised Users, Percentage Valid Certifications for User, Supervised By Me, Total Certifications for Supervised Users, Total Certifications For User, Valid Certifications for Supervised Users, Valid Certifications for User

Trend User Certs (by certifications)

Certification, Date, Percentage Valid for All Users, Total Assigned For All Users, Total Valid For All Users

Trend User Certs (by certifications by supervisors)

Account, Certification ID, Date, Is Me, Percentage Valid for Supervised Users, Supervised by Me, Total Assigned for Supervised Users, Total Valid for Supervised Users

Trend User Certs By Roles (by Users and Supervisors)

Account, Date, Is Me, Percentage Valid Certifications for Supervised Users, Percentage Valid Certifications for User, Percentage Valid Roles for Supervised Users, Total Certifications for User, Total Roles for Supervised Users, Valid Certifications for Supervised Users, Valid Certifications for User, Valid Roles for Supervised Users

User Certification Expiration Dates

The options presented in this table are specific to the certifications required in your subdomain.

User Certifications

Approved By, Approved Date, Certification ID, Completion Date, Expiration Date, Instructor ID, Submitted Date, User ID
